Description

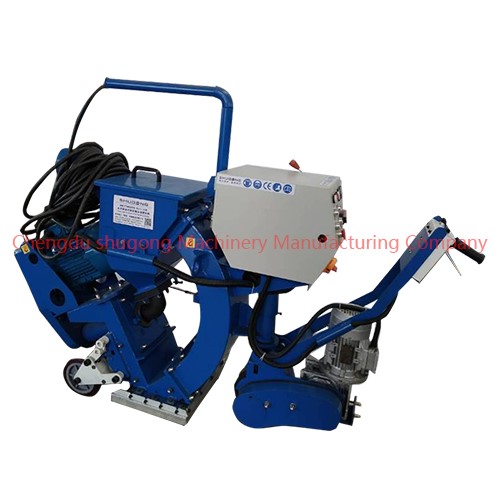

CE/ISO9001 approval China automatic epoxy coating abrator concrete road movable floor surface shotblasters machinery
Shot blasting machine applied in highway surface cleaning blasts the pills on the road surface at high speed and certain angle by the method of mechinery , make pills impect the surface of the road and make the road surface roughness, reach the effect of removing residuum,at the same time,dust collector will produce negative pressure to make pills and impurities and dust dust recovery after air cleaning, intact pills will automatically be recycled to used, and impurities and dust will drop into the dust collecting box.
SG 1-280 shot blasting machine product data as following:
Product data
|
NO |
Product model |
Multipurpose movable type shot blasting machine (SG series1-280) |
|
|
1
|
Shot blast unit |
Shot blasting width |
280mm |
|
Application |
removing the old paint and coating |
||
|
Input voltage |
380v 3phase 50HZ/Customized |
||
|
Total power（kw） |
18.3 |
||
|
Blast motor power(kw) |
1×11kw |
||
|
Type of blast motor |
Special super energy efficiency |
||
|
Shot blast cleaning range(mm) |
280 |
||
|
Cleaning efficiency(m²/h) |
>140(concrete surface)
|
||
|
Running speed（m/min） |
0.5-33 |
||
|
Running method |
Run automatically in horizontal direction |
||
|
Weight of Shot blast unit（kg） |
450 |
||
|
2 |
Vacuum cleaner |
Vacuum cleaner model |
MettmannSG854 |
|
Vacuum cleaner power（kw） |
6.2 |
||
|
Blower fan power（kw） |
4 |
||
|
Filter number (piece) |
3 |
||
|
Filter type |
Imported film and super filter |
||
|
Number of pulse valve(piece) |
2 |
||
|
Dust cleaning form |
Automatic reverse direction blowing |
||
|
Electronic pulse valve |
Digital pulse (two level control system of intelligent logic control system) |
||
|
Connecting pipe diameter（mm） |
150 |
||
|
Connecting pipe length（m） |
20 |
||
|
|
OMRON full protection power system from Japan importing |
||
|
|
PLC control system |
||
Use
